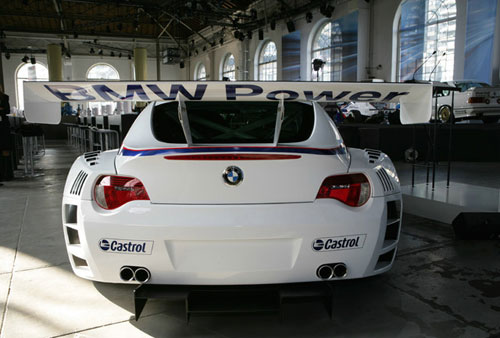

Version compétition du Z4 M coupé par BMW Motorsport
29/03/2006 Dévoilé au Salon automobile de Genève, la version Motorsport du BMW Z4 M Coupé ets une pure voiture de sport destinée aux amoureux de circuits et notamment du fmaeux Nürburgring's Nordschleife. le nouveau coupé Motorsport est aussi destiné aux teams privés pour le championnat allemand d'endurance
Le kit est disponible depuis Mai 2006 auprès de BMW Motorsport pour environ 250 000 euros HT.
Caractéristiques tehcniques BMW Z4 M Coupé Motorsport Version
Length: 4415 mm
Width: 1880 mm
Wheelbase: 2493 mm
Front & Rear Overhang: 865 mm/774mm
Rear Wing Width: 1504 mm
Front & Rear Ground Clearance: 80 mm/90 mm
Front & Rear Tyres: Michelin 27/65-18, 28/71-18
Front Brake: Grey cast iron disc dia. 380 mm / 6 pot fixed calliper
Rear Brake: Grey cast iron disc dia. 320 mm / 4 pot fixed calliper
Drive Line: sequential 6-speed gearbox, sintered clutch
Engine Layout: six cylinder in line
Cylinder Capacity: 3246 cc
Bore x Stroke: 87 x 91 mm
Compression Ratio: 12,5:1
Max. Power: approx. 400 PS at 8200 rpm
Max. Torque: approx. 400 Nm at approx. 5750 rpm
Max. Revolutions per minute: 8400 rpm
Cylinder block: one-piece construction
Crankshaft: forged steel part
Piston: forged slipper skirt piston
Con-rod: Steel
Cylinder head: Aluminium, four valves per cylinder
Valve train: Two chain driven overhead camshafts with variable valve timing
Intake System: Six single throttle valves, Carbon fibre Air box with resonance induction optimised inlet pipes
Exhaust System: Multiple pipe manifold with silencer and catalytic converter
Lubricating System: Wet Sump Lubrication
Cooling System: Water / Air cooler
Flywheel: Steel
Fuel System: Inlet-Pipe Injection, one Injector per Cylinder, 5 bar injection pressure
Fuel: 5-star lead-free petrol, ROZ min=98
Fuel Tank Volume: 120 litres
Minimum Weight: 1200 kg in Nürburgring Specification
Engine Management System: BMW Motorsport ECU406 with two powerful microprocessors, Ethernet Interface and four CAN busses; Cylinder selective optimized Injection and Ignition; Pit-Speed-Limiter; Quick-Shift; Engine Log Book; Electronic Throttle Control; VANOS Control; Race ABS; Traction Control.
Energy Management: Distribution and Control of the electric energy through the BMW Motorsport POWER400 Control Unit; Networking of all Sensors and Actuators through a CAN Bus.
Electric loom: Weight optimised
Ignition coils: Six high performance pencil-type ignition coils with integrated ignition driver.
Sparkplugs: NGK high performance Sparkplugs
Instruments: Free programmable LCD Display with integrated shift lights
Steering-wheel: multiple function Steering-wheel with Quick-Release mechanism and display contro
